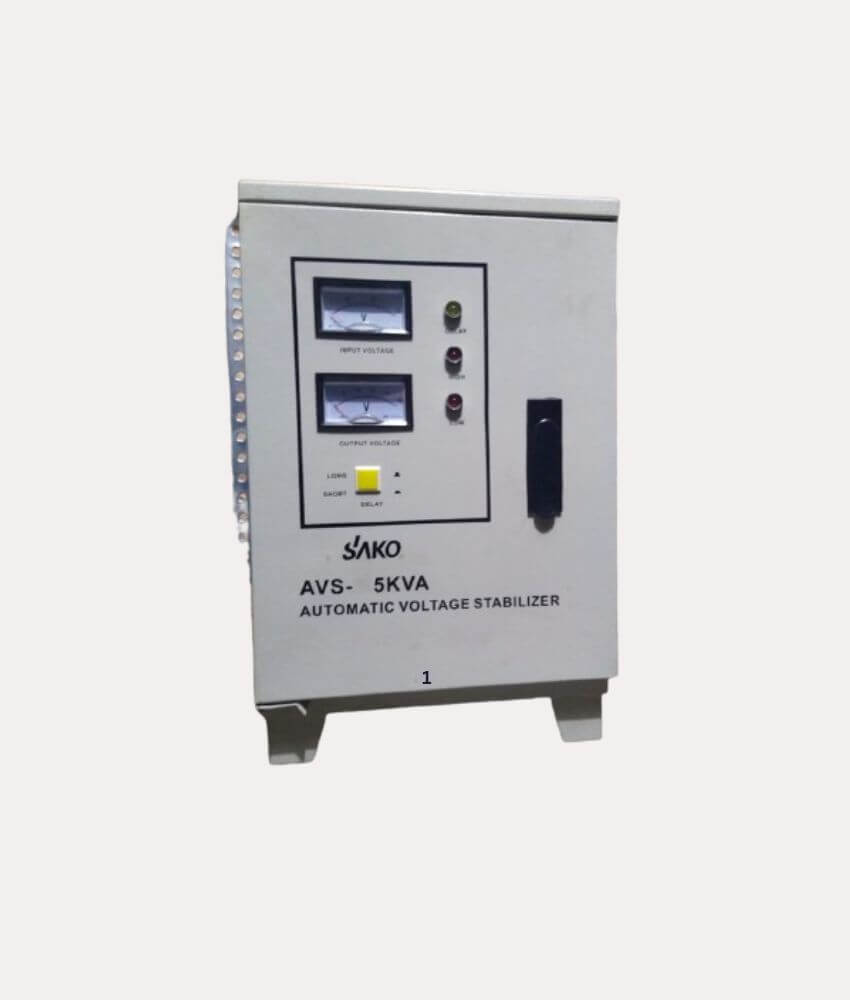

5KVA Voltage Stabilizer
Product Code: 228
Stock: Stock-Out
Price: ৳ 16,500.0
The Sako 5000VA Servo Voltage Stabilizer for Home Applications operates automatically and produces a stabilized power supply when it detects a fluctuation. In addition, the design of an electrical appliance enables it to deliver a constant voltage to a load at its output terminals, regardless of the changes in the input or incoming supply voltage. Furthermore, this stabilizer improves the output of appliances such as air conditioners, heaters, offset printing machines, laboratory equipment, industrial machines, refrigerators, and medical apparatus. Additionally, it shields the equipment or machine against over-voltage, under-voltage, and other voltage surges. Moreover, people also refer to it as an automatic voltage regulator (AVR).
The AVR Series fully automatic voltage regulator consists of autotransformers, servo motors, automatic control circuits, etc. When grid voltage insatiability or load changes, the automatic sampling control circuit sends a signal to drive the servo motor, adjusts the position of the self-coopting voltage regulator for the carbon brush, and makes the output voltage rating reach a stable state.
This product has waveform distortionless, reliable performance. long-term operation and other characteristics, has a time delay, over-voltage, under voltage-protected function, It can be widely used in electricity which needs stable voltage, It is a kind of ideal Voltage stabilized supply. Ensure that your normal operation of electrical equipment
Types of Servo Voltage Stabilizer:
1.) Relay Type Voltage Stabilizers
2.) Servo Controlled Voltage Stabilizers
3.) Static Voltage Stabilizers
Product Details for 5000VA Servo Voltage Stabilizer:
Sako 5000VA Servo Voltage Stabilizer for home applications is a single phase Servo Controlled Voltage Stabilizer, with input voltage, ranging from AC 140 volt to 250 volt and 220V±3% output voltage. It features low loss, instant overload protection, low noise, and a long lifetime and is the best choice for home appliances.
Product Description:
- Brand: Sako
- Model: AVS-5KVA
- Capacity: 5KVA, 5000VA
- Input Voltage: 140Volt-250Volt
- Input Frequency: 50-60Hz
- Output Voltage: 220V±4%
- Efficiency: 9%
- Type: Servo Controlled
- Meter: Analog
- Phase: Single Phase
- Meter Display Status: Input Voltage/Output Voltage
- LED Display Status:-
- Work: Green Indicating Power ON/OFF
- Delay: Yellow Indicating Delay ON/OFF
- Over-V: RED Indicating if the machine is working regularly
- Environmental:-
- Operating temperature: 0~40°C
- Storage temperature: -15°C~40°C
- Operating relative humidity: 10% RH~102% RH; Non-condensing
- Frequency: 50Hz
- Protection: High Volt & Low Volt cut off with auto restarts and delay timers, Sag, Surge, Spike, RF Noise.
- Warranty: 1Year
- Made in China.
5KVA Voltage Stabilizer
The Sako 5KVA Single Phase Stabilizer is available with delivery charges included across Bangladesh. It is important to mention that cables and accessories are not provided with the stabilizer.
Product Description:
Brand: Sako
Model: AVS-5KVA
Capacity: 5KVA, 5000VA
Output Voltage: 220V±4%
Type: Servo Controlled
Meter: Analog
Phase: Single Phase
Warranty: 1Year
Made in China.
